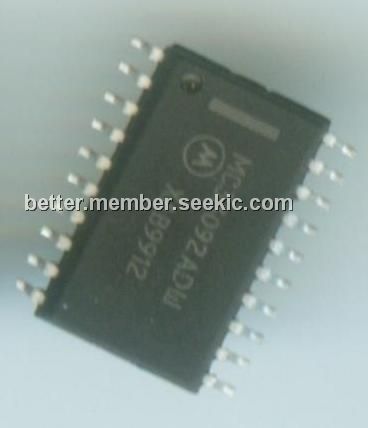

The MC33092ADW is a Alternator Voltage Regulator. It is specifically designed for voltage regulation and Load Response Control (LRC) of diode rectified alternator charging systems, as commonly found in automotive applications. The MC33092ADW provides load response control of the alternator output current to eliminate engine speed hunting and vibration due to sudden electrical loads which cause abrupt torque loading of the engine at low RPM.
Parametrics
MC33092ADW absolute maximum ratings: (1)Power Supply Voltage:24 V; (2)Load Dump Transient Voltage:40 V; (3)Negative Voltage:–2.5 V; (4)Maximum Power Dissipation @ TA = 125℃:867 mW; (5)Thermal Resistance, Junction–to–Ambient:75℃/W; (6)Operating Junction Temperature:+150℃; (7)Operating Ambient Temperature Range:–35℃ to +125℃; (8)Storage Temperature Range:–45℃ to +150℃.
Features
MC33092ADW features: (1)Forced Load Response Control (LRC) with Heavy Load Transitions at Low RPM; (2)Capable of Regulating Voltage to ± 0.1 V @ 25℃; (3)Operating Frequency Selectable with One External Resistor; (4)< 0.1 V Variation over Speed Range of 2000 to 10,000 RPM; (5)< 0.4 V Variation over 10% to 95% of Maximum Alternator Output; (6)Maintains Regulation with External Loads as Low as 1.0 A; (7)Load Dump Protection of Lamp, Field Control Devices, and Loads; (8)Duty Cycle Limit Protection; (9)Provides High Side MOSFET Control of a Ground Referenced Field Winding; (10)Controlled MOSFET and Flyback Diode Recovery Characteristics for Minimum RFI; (11)< 2.0 mA Standby Current from Battery @ 25℃; (12)< 3.0 mA Standby Current from Battery Over Temperature Range; (13)Optional 2.5 or 10 sec. LRC Rate Control (Osc. Freq. = 280 kHz); (14)Undervoltage, Overvoltage and Phase Fault (Broken Belt) Detection.

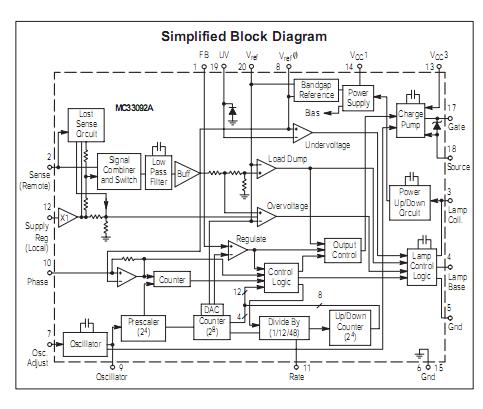

Diagrams
 |
