Product Summary
The MAX708RESA is a microprocessor (μP) supervisory circuit. The MAX708RESA reduces the complexity and number of components required to monitor +3V power-supply levels in +3V to +5V μP systems. The MAX708RESA significantly improves system reliability and accuracy compared to separate ICs or discrete components.
Parametrics
MAX708RESA absolute maximum ratings: (1)Terminal Voltage (with respect to GND):VCC:-0.3V to +6V, All Other Inputs:-0.3V to (VCC + 0.3V); (2)Input Current:VCC:20mA, GND:20mA; (3)Output Current (all outputs):20mA; (4)Continuous Power Dissipation (TA = +70℃):470.6mW; (5)Operating Temperature Range:-40℃ to +85℃; (6)Junction Temperature:+150℃; (7)Storage Temperature Range:-65℃ to +150℃; (8)Lead Temperature (soldering, 10s):+300℃.
Features
MAX708RESA features: (1)μMAX Package, Small 8-Pin SO; (2)Precision Supply-Voltage Monitors 2.63V; (3)200ms Reset Time Delay; (4)Debounced TTL/CMOS-Compatible Manual Reset Input; (5)100μA Quiescent Current; (6)Watchdog Timer: 1.6s Timeout; (7)Reset Output Signal:Active-High and Active-Low; (8)Voltage Monitor for Power-Fail or Low-Battery Warning; (9)8-Pin Surface-Mount Package; (10)Guaranteed RESET Assertion to VCC = 1V.

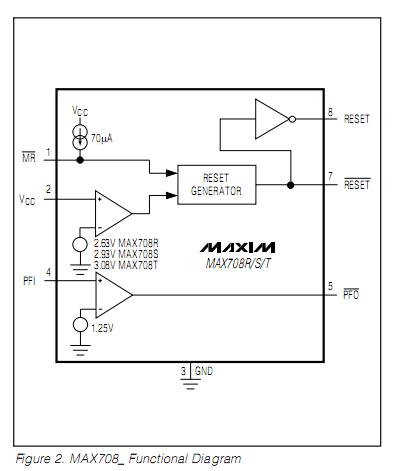

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX708RESA |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX708RESA+ |
Maxim Integrated Products |
Supervisory Circuits Single uPower Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX708RESA-TG |
ON Semiconductor |
Supervisory Circuits 2.63V uP Supervisory |
Data Sheet |
|
|
||||||||||||
|
MAX708RESA+T |
Maxim Integrated Products |
Supervisory Circuits Single uPower Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX708RESA-T |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
