Product Summary

The ADM706SAR is a microprocessor supervisory circuit. It is suitable for monitoring either 3 V or 3.3 V power supplies. The applications of ADM706SAR are Microprocessor Systems, Computers, Controllers, Intelligent Instruments, Critical mP Monitoring, Automotive Systems, Battery Operated Systems, Portable Instruments.

Parametrics

ADM706SAR absolute maximum ratings: (1)VCC:–0.3 V to +6 V; (2)All Other Inputs:–0.3 V to VCC + 0.3 V; (3)Input Current: VCC:20 mA, GND:20 mA; (4)Digital Output Current:20 mA; (5)Power Dissipation:470 mW, θJA Thermal Impedance:110℃/W; (6)Operating Temperature Range Industrial (A Version):–40℃ to +85℃; (7)Lead Temperature (Soldering, 10 secs):+300℃; (8)Vapor Phase (60 secs):+215℃; (9)Infrared (15 secs):+220℃; (10)Storage Temperature Range:–65℃ to +150℃; (11)ESD Rating:>5 kV.

Features

ADM706SAR features: (1)Precision Supply-Voltage Monitor +2.93 V; (2)100 μA Quiescent Current; (3)200 ms Reset Pulsewidth; (4)Debounced Manual Reset Input (MR); (5)Independent Watchdog Timer—1.6 sec Timeout; (6)Reset Output; (7)Active Low; (8)Both Active High and Active Low; (9)Voltage Monitor for Power-Fail or Low Battery Warning; (10)Guaranteed RESET Valid with VCC = 1 V; (11)Superior Upgrade for MAX706P/R/S/T, MAX708R/S/T.

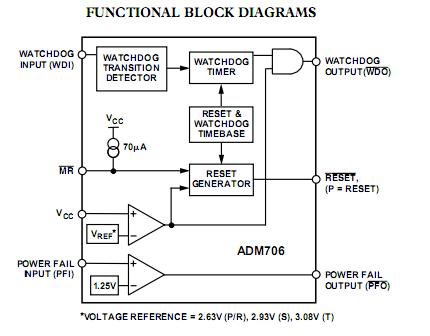

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADM706SAR
ADM706SAR

IC SUPERVISOR MPU 2.93 WD 8SOIC
Data Sheet
0-196: $1.30
ADM706SAR-REEL
ADM706SAR-REEL

IC SUPERVISOR MPU 2.93V WD 8SOIC
Data Sheet
0-2500: $0.84
ADM706SARZ
ADM706SARZ

IC SUPERVISOR MPU 2.93 WD 8SOIC
Data Sheet
0-1: $1.53
1-10: $1.36
10-100: $1.12
100-250: $1.01
250-500: $0.91
500-1000: $0.76
1000-2500: $0.73
ADM706SARZ-REEL
ADM706SARZ-REEL

IC SUPERVISOR MPU 2.93V WD 8SOIC
Data Sheet
0-2500: $0.73
